SICK WT150-P460 6011050

WT150-P460 · 6011050 · Miniatur-Lichtschranken , WT150-P460

德国 施克 SICK
基本信息

型号: WT150-P460

订货号: 6011050

参考面价: €19,594.00 ≈ ¥144223.60 查看汇率详情 →

Miniatur-Lichtschranken , WT150-P460
Merkmale
Funktionsprinzip:
Reflexions-Lichttaster
Funktionsprinzip Detail:
Hintergrundausblendung

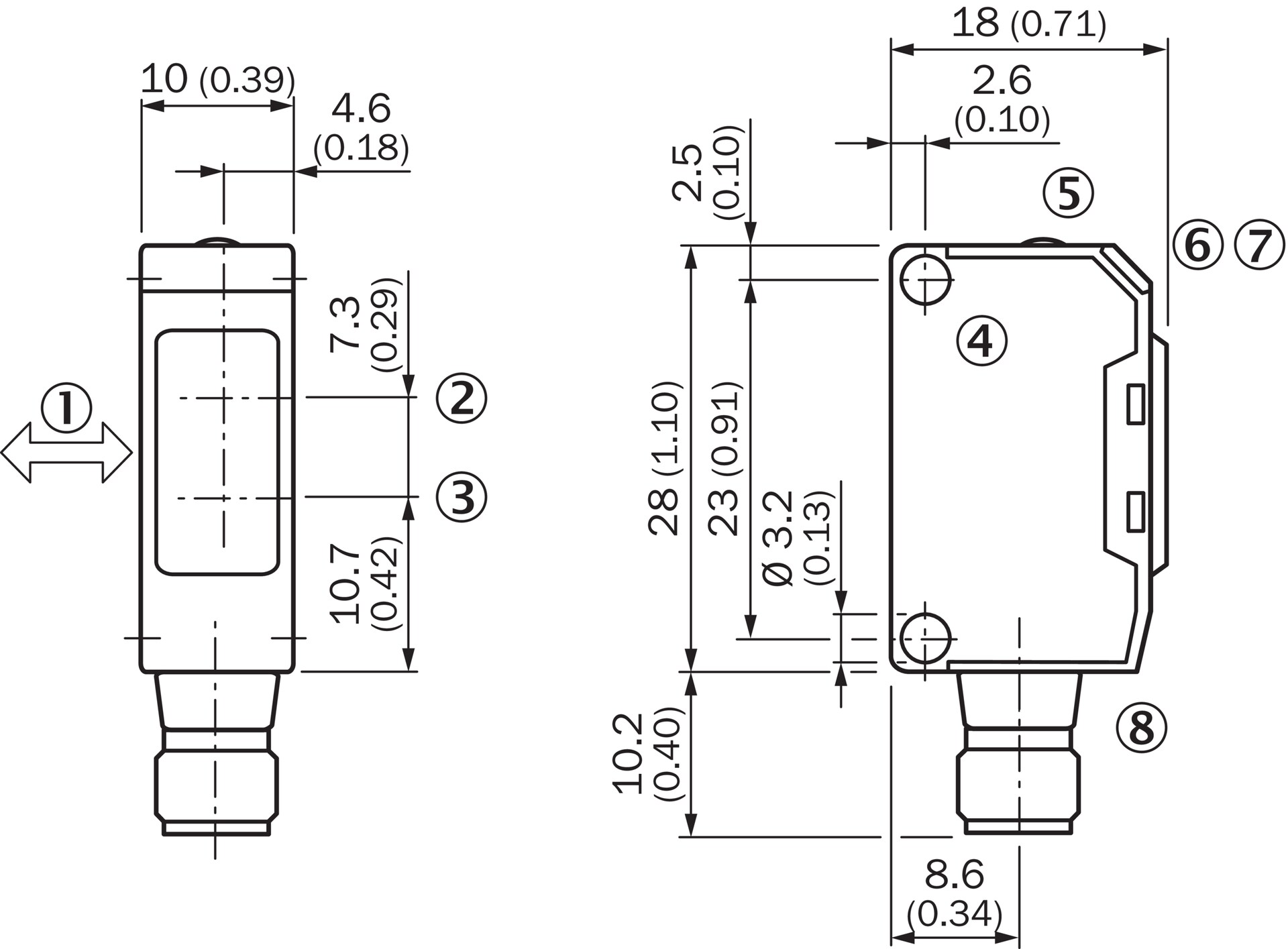

Abmessungen (B x H x T):
10 mm x 28 mm x 18 mm
Gehäuseform (Lichtaustritt):
Quaderförmig
Schaltabstand max.:
2 mm ... 100 mm 1)
Fokus:
Ca. 5°
Lichtart:
Sichtbares Rotlicht
Lichtsender:
LED 2)
Abstrahlwinkel:
Ca. 5°

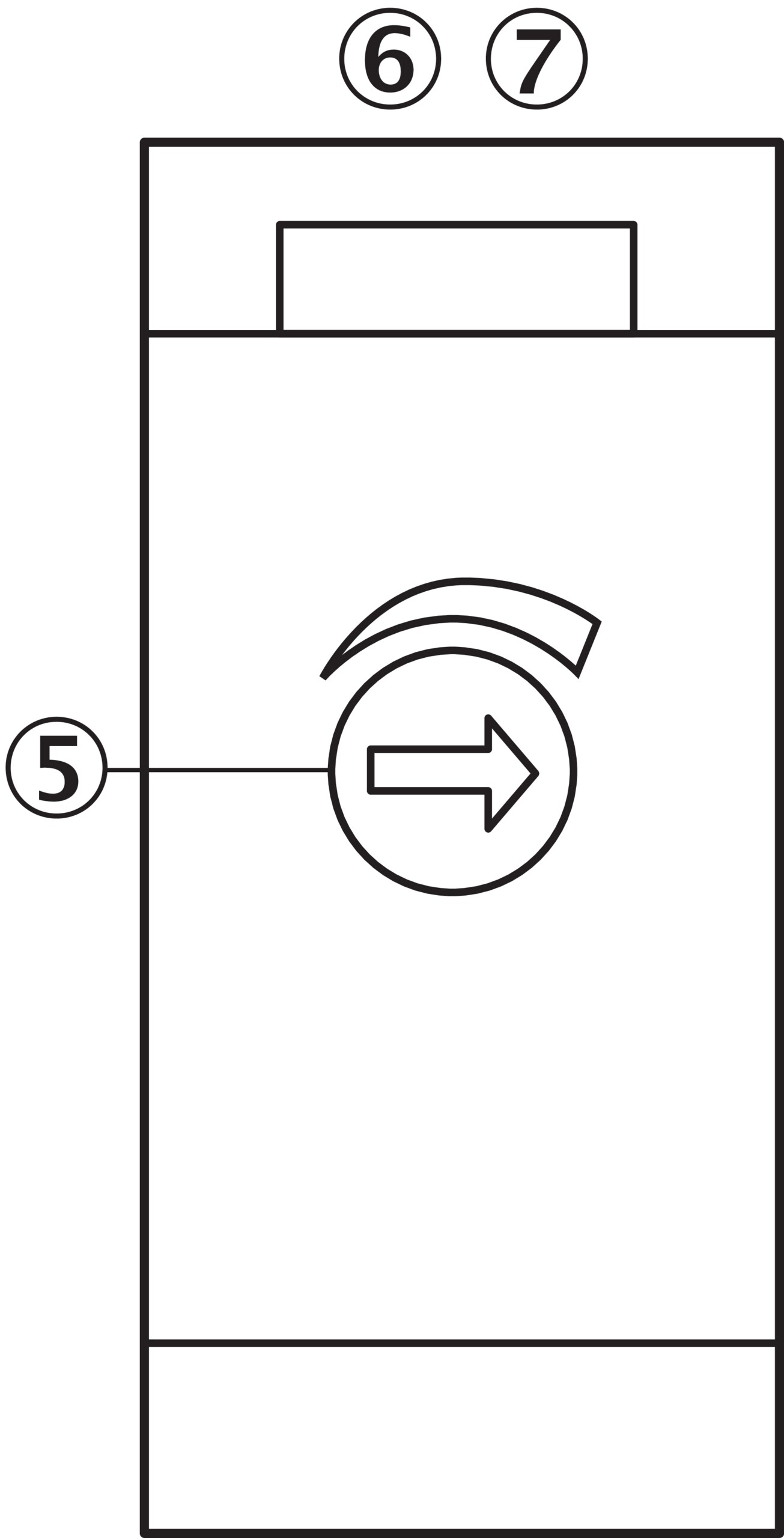

Einstellung:
Potentiometer, 5 Umdrehungen
Mechanik/Elektrik
Versorgungsspannung UB:
10 V DC ... 30 V DC 1)
Restwelligkeit:
± 10 % 2)
Stromaufnahme:
20 mA 3)
Schaltausgang:
PNP
Schaltart:
Hell-/dunkelschaltend
Schaltart wählbar:
Wählbar, per L-/D-Steuerleitung
Ausgangsstrom Imax.:
≤ 100 mA
Ansprechzeit:
≤ 0,5 ms 4)
Schaltfrequenz:
1.000 Hz 5)
Anschlussart:
Stecker M8, 4-polig
Schutzschaltungen:
  • A 6)
  • B 7)
  • C 8)
  • D 9)
Schutzklasse:
II
Gewicht:
7 g
Gehäusematerial:
Kunststoff, ABS
Werkstoff, Optik:
Kunststoff, PC
Schutzart:
IP67
Lieferumfang:
Befestigungswinkel BEF-W150-A
Umgebungstemperatur Betrieb:
–25 °C ... +55 °C
Umgebungstemperatur Lager:
–40 °C ... +75 °C
UL-File-Nr.:
NRNT2.E128350 & NRNT8.E128350
Sicherheitstechnische Kenngrößen
MTTFD:
1.686 Jahre
DCavg:
0 %
Zertifikate
EU declaration of conformity:
✔
UK declaration of conformity:
✔
ACMA declaration of conformity:
✔
MAR declaration of conformity:
✔
China-RoHS:
✔
cRUus-Zertifikat:
✔
EAC-Zertifikat / DoC:
✔
Photobiologische Sicherheit (DIN EN 62471)-Zertifikat:
✔
Klassifikationen
ECLASS 5.0:
27270903
ECLASS 5.1.4:
27270903
ECLASS 6.0:
27270903
ECLASS 6.2:
27270903
ECLASS 7.0:
27270903
ECLASS 8.0:
27270903
ECLASS 8.1:
27270903
ECLASS 9.0:
27270903
ECLASS 10.0:
27270904
ECLASS 11.0:
27270904
ECLASS 12.0:
27270903
ETIM 5.0:
EC001821
ETIM 6.0:
EC001821
ETIM 7.0:
EC002719
ETIM 8.0:
EC002719
UNSPSC 16.0901:
39121528
