di-soric DCCR 44 K 20 PSOL-IBS 207279
DCCR 44 K 20 PSOL-IBS · 207279 · The sensors in the INE Extended series are robust sensors in all sizes up to M30, which offer more than just the standard. Thanks to their double and triple switching distances, they exhibit greater mounting tolerances. The INE sensors are available in normal and short designs. In addition to the common standard connections with plugs or PVC cables, PUR cables and cables with connector are also available.

正在准备报价入口;若无法继续,请启用 JavaScript。
1 / 5
基本信息
The sensors in the INE Extended series are robust sensors in all sizes up to M30, which offer more than just the standard. Thanks to their double and triple switching distances, they exhibit greater mounting tolerances. The INE sensors are available in normal and short designs. In addition to the common standard connections with plugs or PVC cables, PUR cables and cables with connector are also available.
- Die Serie INE-200 Industriell, mit zwei- und dreifachen Schaltabständen, sind in allen Größen bis M30 in normaler und kurzer Bauform erhältlich. Neben den Standardanschlüssen mit Stecker oder PVC Kabel, sind auch PUR-Kabel und Kabel mit Stecker verfügbar.
基本属性
长度:67 mm
宽度:40 mm
高度:40 mm
Elektrische Merkmale
- Strombelastbarkeit:
- kurzschlussfest, verpolgeschützt
- Betriebsspannung:
- 10 … 30 V DC
- Eigenstromaufnahme:
- < 20 mA
Mechanische Merkmale
- Einbauart:
- bündig

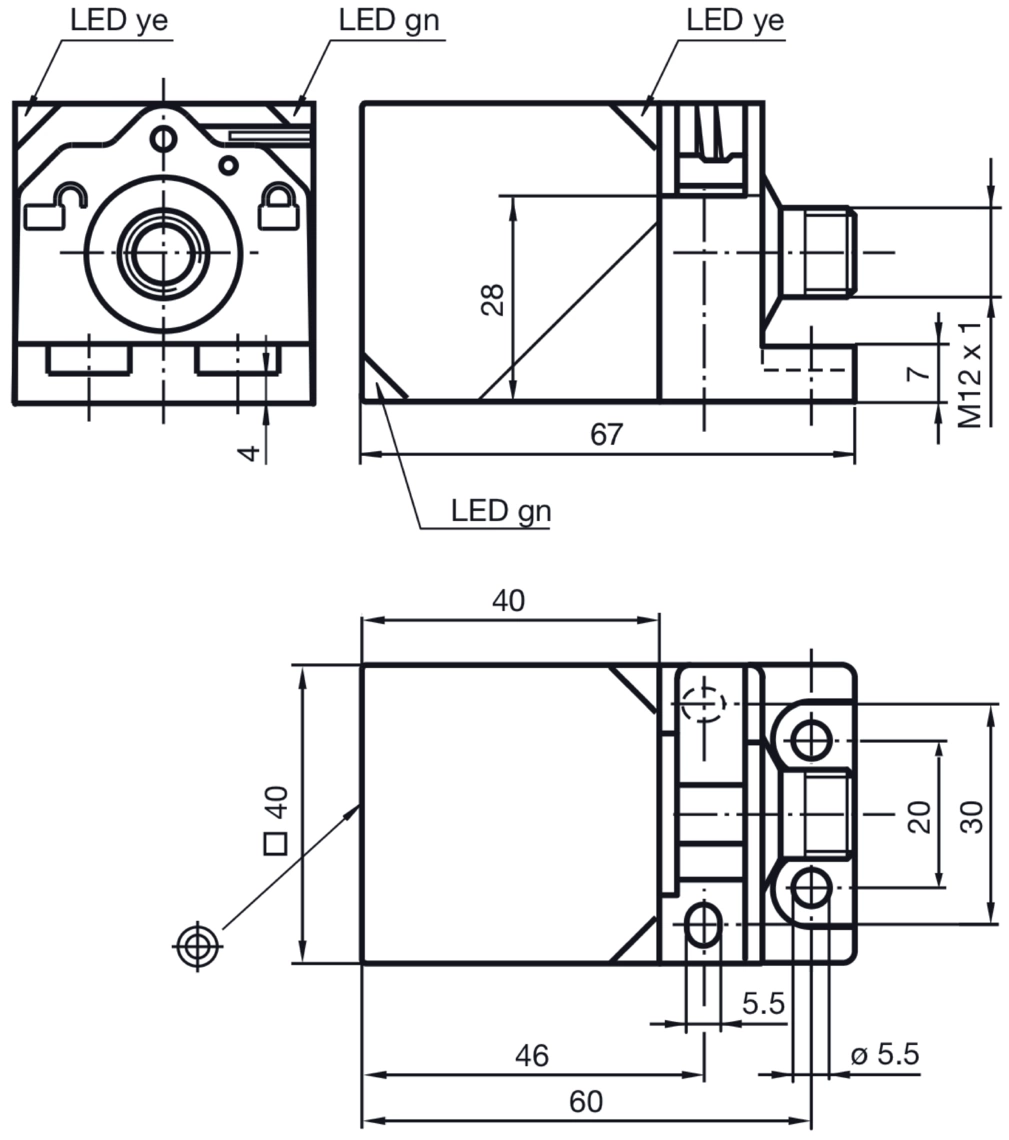

- Gehäuseabmaße:
- 40 x 40 mm
- Gehäuselänge:
- 67 mm
- Gehäusehöhe:
- 40 mm
- Gehäusebreite:
- 40 mm
- Gehäusematerial:
- Kunststoff (PA)
Zertifizierungen, Zulassungen
- Schutzklasse:
- III, Betrieb an Schutzkleinspannung
Allgemeine Merkmale
- Funktionsprinzip:
- Induktiv
- Auswertung:
- digital
- Bauform:
- Quader
- Produktserie:
- INE Extended
Ausgang, Eingang, Schnittstelle
- Schaltausgang:
- pnp, 200 mA, antivalent
- Spannungsfall (max.):
- 2 V
Erfassungsbereich, Messbereich, Toleranzgrenzen
Anzeige, Bedienung
Zeitverhalten
Umgebungsbedingungen
Elektrischer Anschluss
