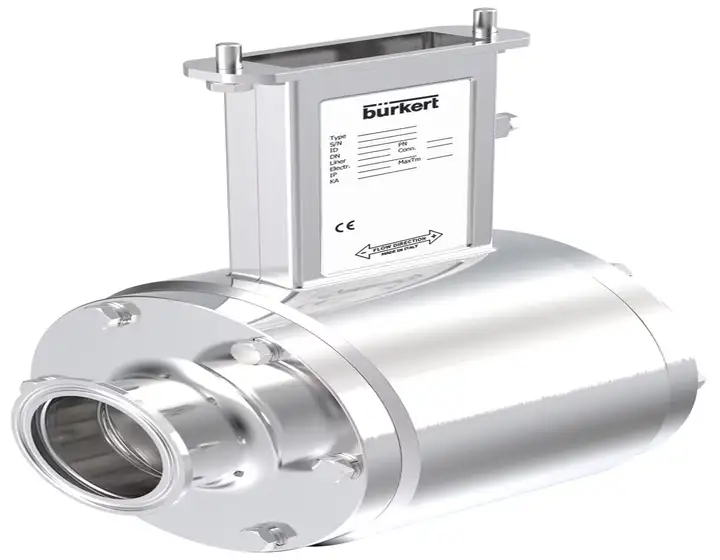

Bürkert 00559786

00559786 · für full bore | 0,00l/h - 250l/h | -20,00 °C - 130,00 °C | PN 16 | Clamp | Edelstahl

德国 宝德 Bürkert
基本信息

型号: 00559786

参考面价: €1,150.00 ≈ ¥8464.69 查看汇率详情 →

für full bore | 0,00l/h - 250l/h | -20,00 °C - 130,00 °C | PN 16 | Clamp | Edelstahl
基本属性
净重:2.200 KG
Sensor
Sensor Art:
Magnetisch induktiv
Magnetisch induktiv Art:
Fullbore
Anzahl Elektroden:
2 ST
Elektrode Werkstoff:
Edelstahl
Wirkungsweise
Fluidischer Leitungsanschluss Anzahl:
2
Medium & Kalibrierung
Dynamische Viskosität min.:
0 cP
Dynamische Viskosität max.:
20.000 cP
Messwerte
Messwert Volumendurchfluss min:
0
Messwert Volumendurchfluss max:
250
Einheit Messwert:
l/h
Prozess- / Leitungsanschluss
Leitungsanschluss 1 Typ:
Clamp
Leitungsanschluss 1 Innendurchmesser (mm):
10,3 mm
Leitungsanschluss 1 Größe DN:
DN 15
Leitungsanschluss 1 Wandstärke (mm):
1,2 mm
Leitungsanschluss 1 Außendurchmesser (mm):
12,7 mm
Leitungsanschluss 1 Rohrnorm 1:
BS 4825-1
Leitungsanschluss 1 Clamp:
BS 4825-3
Leitungsanschluss 1 Clamp Außendurchmesser (mm):
25,4 mm
Leitungsanschluss Werkstoff Kategorie:
Metalle
Leitungsanschluss Werkstoff:
Edelstahl
Werkstoffe
Druck & Temperatur
Dichtungsmaterial
Zulassungen
Geräteeigenschaften
Fitting
Schutzart
