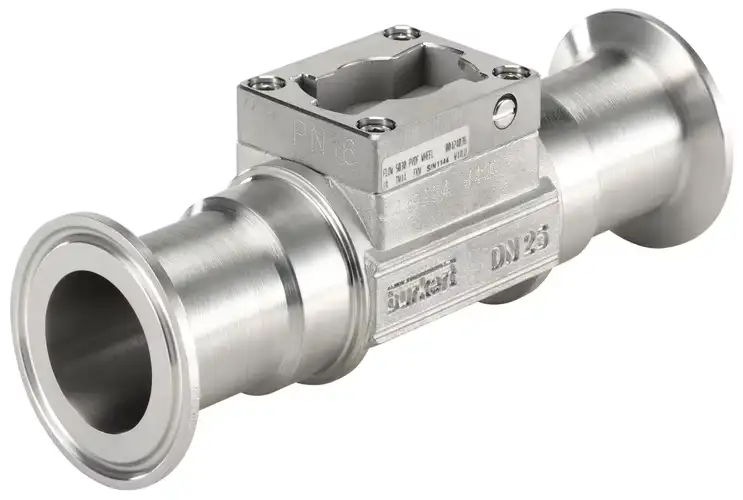

Bürkert 00551799

00551799 · Inline | 1.357,00l/h - 45.239l/h | -15,00 °C - 100,00 °C | PN 16 | Clamp | Edelstahl

德国 宝德 Bürkert
基本信息

型号: 00551799

参考面价: €926.00 ≈ ¥6815.92 查看汇率详情 →

Inline | 1.357,00l/h - 45.239l/h | -15,00 °C - 100,00 °C | PN 16 | Clamp | Edelstahl
基本属性
净重:1.350 KG
Sensor
Sensor Art:
Flügelrad
Flügelrad Werkstoff:
PVDF (Polyvinylidenfluorid)
Flügelrad Art:
magnetisch
Wirkungsweise
Fluidischer Leitungsanschluss Anzahl:
2
Medium & Kalibrierung
Dynamische Viskosität min.:
0 cP
Dynamische Viskosität max.:
300 cP
Messwerte
Messwert Volumendurchfluss min:
1.357
Messwert Volumendurchfluss max:
45.239
Einheit Messwert:
l/h
Prozess- / Leitungsanschluss
Leitungsanschluss 1 Typ:
Clamp
Leitungsanschluss 1 Innendurchmesser (mm):
50 mm
Leitungsanschluss 1 Größe DN:
DN 50
Leitungsanschluss 1 Wandstärke (mm):
1,5 mm
Leitungsanschluss 1 Außendurchmesser (mm):
53 mm
Leitungsanschluss 1 Rohrnorm 1:
DIN 11850
Leitungsanschluss 1 Clamp:
DIN 32676 Reihe A (DIN)
Leitungsanschluss 1 Clamp Außendurchmesser (mm):
64 mm
Leitungsanschluss Werkstoff Kategorie:
Metalle
Leitungsanschluss Werkstoff:
Edelstahl
Werkstoffe
Druck & Temperatur
Dichtungsmaterial
Zulassungen
Geräteeigenschaften
