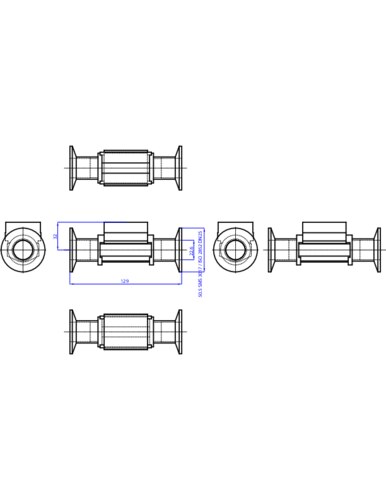

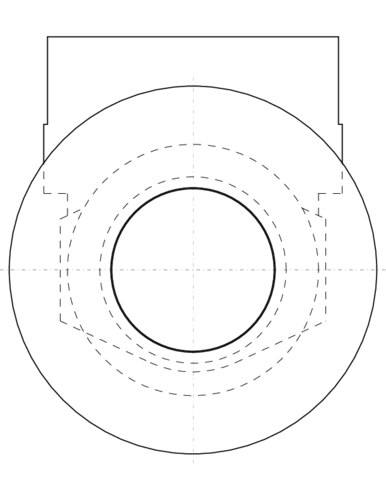

Bürkert 00443302

00443302 · Inline | 422,00l/h - 14.061l/h | -15,00 °C - 100,00 °C | PN 16 | Clamp | Edelstahl

德国 宝德 Bürkert
基本信息

型号: 00443302

参考面价: €692.00 ≈ ¥5093.54 查看汇率详情 →

Inline | 422,00l/h - 14.061l/h | -15,00 °C - 100,00 °C | PN 16 | Clamp | Edelstahl
基本属性
净重:0.700 KG
Sensor
Sensor Art:
Flügelrad
Flügelrad Werkstoff:
PVDF (Polyvinylidenfluorid)
Flügelrad Art:
magnetisch
Wirkungsweise
Fluidischer Leitungsanschluss Anzahl:
2
Medium & Kalibrierung
Dynamische Viskosität min.:
0 cP
Dynamische Viskosität max.:
300 cP
Messwerte
Messwert Volumendurchfluss min:
422
Messwert Volumendurchfluss max:
14.061
Einheit Messwert:
l/h
Prozess- / Leitungsanschluss
Leitungsanschluss 1 Typ:
Clamp

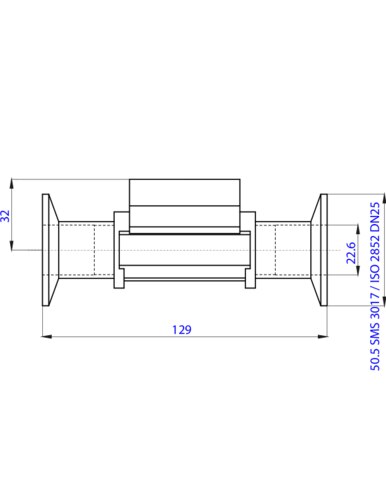

Leitungsanschluss 1 Innendurchmesser (mm):
22,6 mm
Leitungsanschluss 1 Größe DN:
DN 25
Leitungsanschluss 1 Wandstärke (mm):
1,2 mm
Leitungsanschluss 1 Außendurchmesser (mm):
25 mm
Leitungsanschluss 1 Rohrnorm 1:
ISO 4200
Leitungsanschluss 1 Clamp:
SMS 3017
Leitungsanschluss 1 Clamp Außendurchmesser (mm):
50,5 mm
Leitungsanschluss Werkstoff Kategorie:
Metalle
Leitungsanschluss Werkstoff:
Edelstahl
Werkstoffe
Druck & Temperatur
Dichtungsmaterial
Zulassungen
Geräteeigenschaften
