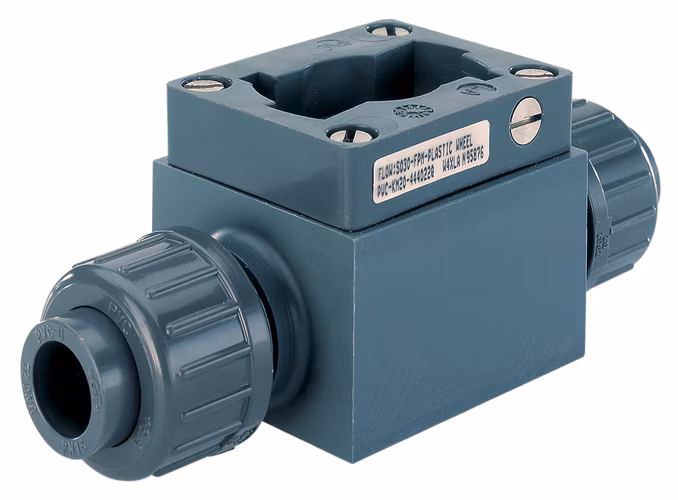

Bürkert 00429075
00429075 · Inline | 963,00l/h - 32.110l/h | 0,00 °C - 50,00 °C | PN 10 | Klebemuffe | G2 | PVC (Polyvinylchlorid)

正在准备报价入口;若无法继续,请启用 JavaScript。
1 / 4
基本信息
型号: 00429075
参考面价: €320.00 ≈ ¥2355.39 查看汇率详情 →
Inline | 963,00l/h - 32.110l/h | 0,00 °C - 50,00 °C | PN 10 | Klebemuffe | G2 | PVC (Polyvinylchlorid)
基本属性
净重:0.440 KG
Sensor
- Sensor Art:
- Flügelrad
- Flügelrad Werkstoff:
- PVDF (Polyvinylidenfluorid)
- Flügelrad Art:
- magnetisch
Wirkungsweise
- Fluidischer Leitungsanschluss Anzahl:
- 2
Medium & Kalibrierung
- Dynamische Viskosität min.:
- 0 cP
- Dynamische Viskosität max.:
- 300 cP
Messwerte
- Messwert Volumendurchfluss min:
- 963
- Messwert Volumendurchfluss max:
- 32.110
- Einheit Messwert:
- l/h
Prozess- / Leitungsanschluss
- Leitungsanschluss 1 Typ:
- Klebemuffe
- Leitungsanschluss 1 Gewindebezeichnung:
- 2
- Leitungsanschluss 1 Gewindeart:
- G

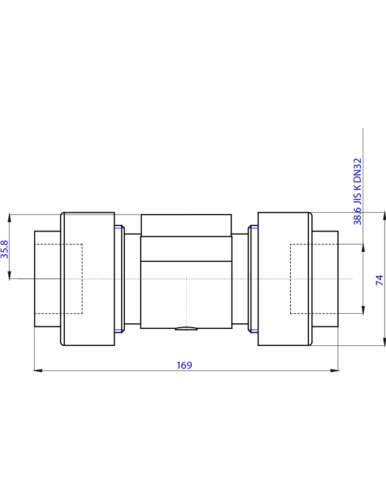

- Leitungsanschluss 1 Innendurchmesser (mm):
- 38,6 mm
- Leitungsanschluss 1 Größe DN:
- DN 32
- Leitungsanschluss 1 Außendurchmesser (mm):
- 48 mm
- Leitungsanschluss 1 DN Zoll:
- 1,25 Zoll
- Leitungsanschluss 1 Kleben:
- JIS K
- Leitungsanschluss Werkstoff Kategorie:
- Kunststoffe
- Leitungsanschluss Werkstoff:
- PVC (Polyvinylchlorid)
Werkstoffe
Druck & Temperatur
Dichtungsmaterial
Geräteeigenschaften
