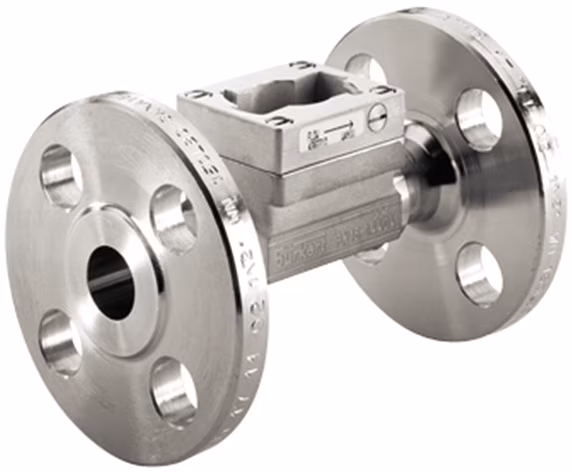

Bürkert 00424047
00424047 · Inline | 422,00l/h - 14.061l/h | -15,00 °C - 100,00 °C | PN 16 | Flansch | Edelstahl

正在准备报价入口;若无法继续,请启用 JavaScript。
1 / 4
基本信息
型号: 00424047
参考面价: €723.00 ≈ ¥5321.71 查看汇率详情 →
Inline | 422,00l/h - 14.061l/h | -15,00 °C - 100,00 °C | PN 16 | Flansch | Edelstahl
基本属性
净重:2.090 KG
Sensor
- Sensor Art:
- Flügelrad
- Flügelrad Werkstoff:
- PVDF (Polyvinylidenfluorid)
- Flügelrad Art:
- magnetisch
Wirkungsweise
- Fluidischer Leitungsanschluss Anzahl:
- 2
Medium & Kalibrierung
- Dynamische Viskosität min.:
- 0 cP
- Dynamische Viskosität max.:
- 300 cP
Messwerte
- Messwert Volumendurchfluss min:
- 422
- Messwert Volumendurchfluss max:
- 14.061
- Einheit Messwert:
- l/h
Prozess- / Leitungsanschluss
- Leitungsanschluss 1 Typ:
- Flansch
- Leitungsanschluss 1 Größe DN:
- DN 20
- Leitungsanschluss 1 Flansch:
- ANSI B16.5
- Leitungsanschluss 1 DN Zoll:
- 0,75 Zoll
- Leitungsanschluss Werkstoff Kategorie:
- Metalle
- Leitungsanschluss Werkstoff:
- Edelstahl
Werkstoffe
Druck & Temperatur
Dichtungsmaterial
Geräteeigenschaften
