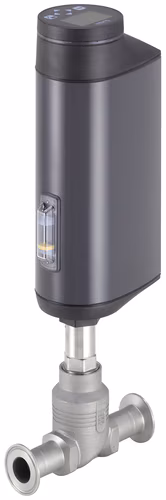

Bürkert 00377477

00377477 · Geradsitzventil | 2 | PTFE (Polytetrafluorethylen) | DIN 32676 Serie A (DIN-Pipe DIN11850) | DN 32 (NPS 1 1/4) - 35,0x1,5 Cl: 50,5 | 24 V DC | 0,00 bar - 16,00 bar

德国 宝德 Bürkert
基本信息

型号: 00377477

参考面价: €3,080.00 ≈ ¥22670.65 查看汇率详情 →

Geradsitzventil | 2 | PTFE (Polytetrafluorethylen) | DIN 32676 Serie A (DIN-Pipe DIN11850) | DN 32 (NPS 1 1/4) - 35,0x1,5 Cl: 50,5 | 24 V DC | 0,00 bar - 16,00 bar
基本属性
净重:6.422 KG
Wirkungsweise
Fluidischer Leitungsanschluss Anzahl:
2
Steuerfunktion:
Verblockung der statischen Stellung, ohne elektrischem Energiespeicher
Handbetätigung:
Ja
Prozess- / Leitungsanschluss
Leitungsanschluss 1 Nennweite:
DN 32 (NPS 1 1/4) - 35,0x1,5 Cl: 50,5
Leitungsanschluss 1 Typ:
Clamp
Leitungsanschluss 1 Norm:
DIN 32676 Serie A (DIN-Pipe DIN11850)
Spannung
Versorgungsspannung:
24 V DC
Werkstoffe
Ventilgehäuse Werkstoff:
Edelstahl
Druck & Temperatur
Nenndruck min:
0 bar
Nenndruck max:
16 bar
Nenndruck (DIN EN 1333):
PN 25
Nenndruck (DIN EN 1759):
Class 150
Temperatur Medium min:
-10 °C
Temperatur Medium max:
130 °C
Temperatur Umgebung min:
-25 °C
Dichtungsmaterial
Zulassungen
Antrieb
Ein-/Ausgänge
Nennweite (Kv Wert)
Funktionen
Geräteeigenschaften
Elektrischer Anschluss
Software / Kommunikation
Schutzart
