Bürkert 20052166

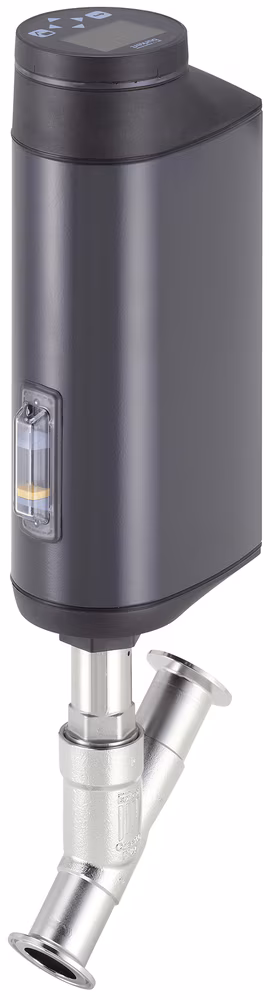

20052166 · Schrägsitzventil | 2 | PEEK (Polyetheretherketon) | ASME BPE | DN 15 (NPS 1/2) - 12,7x1,65 Cl: 25,0 | 24 V DC | 0,00 bar - 25,00 bar

德国 宝德 Bürkert
基本信息

型号: 20052166

参考面价: €3,470.00 ≈ ¥25541.28 查看汇率详情 →

Schrägsitzventil | 2 | PEEK (Polyetheretherketon) | ASME BPE | DN 15 (NPS 1/2) - 12,7x1,65 Cl: 25,0 | 24 V DC | 0,00 bar - 25,00 bar
基本属性
净重:4.287 KG
Wirkungsweise
Fluidischer Leitungsanschluss Anzahl:
2
Steuerfunktion:
In Ruhestellung geschlossen (Auslieferungszustand), mit elektrischem Energiespeicher
Handbetätigung:
Ja
Prozess- / Leitungsanschluss
Leitungsanschluss 1 Nennweite:
DN 15 (NPS 1/2) - 12,7x1,65 Cl: 25,0
Leitungsanschluss 1 Typ:
Clamp
Leitungsanschluss 1 Norm:
ASME BPE
Spannung
Versorgungsspannung:
24 V DC
Werkstoffe
Ventilgehäuse Werkstoff:
Edelstahl
Druck & Temperatur
Nenndruck min:
0 bar
Nenndruck max:
25 bar
Nenndruck (DIN EN 1333):
PN 25
Nenndruck (DIN EN 1759):
Class 150
Temperatur Medium min:
-10 °C
Temperatur Medium max:
185 °C
Temperatur Umgebung min:
-25 °C
Dichtungsmaterial
Zulassungen
Antrieb
Ein-/Ausgänge
Nennweite (Kv Wert)
Funktionen
Geräteeigenschaften
Elektrischer Anschluss
Software / Kommunikation
Schutzart
