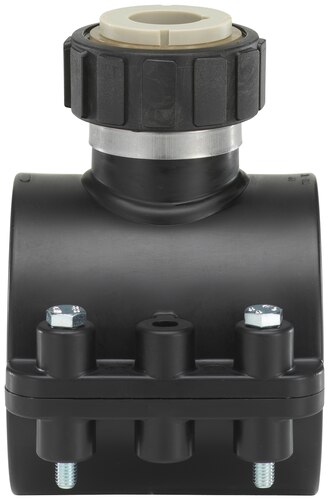

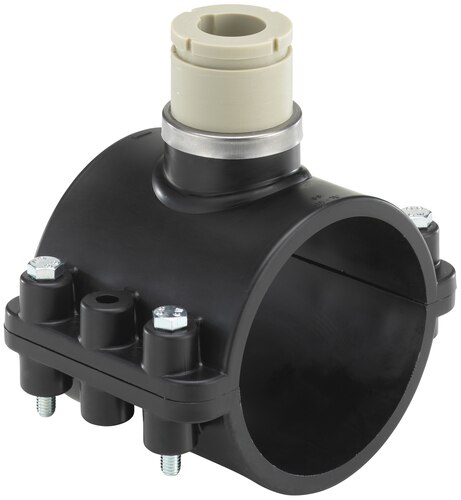

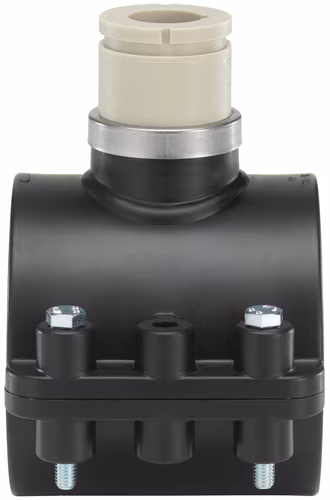

Bürkert 00425142
00425142 · Insertion 2 (Zoll) | 167,00l/min - 5.000l/min | 0,00 °C - 60,00 °C | PN 10 | Anschlussschelle | PP (Polypropylen)

正在准备报价入口;若无法继续,请启用 JavaScript。
1 / 7
基本信息
型号: 00425142
参考面价: €129.00 ≈ ¥949.52 查看汇率详情 →
Insertion 2 (Zoll) | 167,00l/min - 5.000l/min | 0,00 °C - 60,00 °C | PN 10 | Anschlussschelle | PP (Polypropylen)
基本属性
净重:0.940 KG
Wirkungsweise
- Fluidischer Leitungsanschluss Anzahl:
- 2
Messwerte
- Messwert Volumendurchfluss min:
- 167
- Messwert Volumendurchfluss max:
- 5.000
- Einheit Messwert:
- l/min
Prozess- / Leitungsanschluss
- Leitungsanschluss 1 Typ:
- Anschlussschelle
- Leitungsanschluss 1 Innendurchmesser (mm):
- 125 mm
- Leitungsanschluss Werkstoff Kategorie:
- Kunststoffe
- Leitungsanschluss Werkstoff:
- PP (Polypropylen)
Werkstoffe
- Armatur Werkstoff:
- PVC (Polyvinylchlorid)
- Messrohr Werkstoff:
- PP (Polypropylen ohne Glasfaser)
Druck & Temperatur
- Nenndruck (DIN EN 1333):
- PN 10
- Temperatur Medium min:
- 0 °C
- Temperatur Medium max:
- 60 °C
Dichtungsmaterial
Geräteeigenschaften
