ABB S202-K16 2CDS252001R0467
S202-K16 2CDS252001R0467S202-K16MiniatureCircuit
S202-K16
基本信息
型号: S202-K16
订货号: 2CDS252001R0467

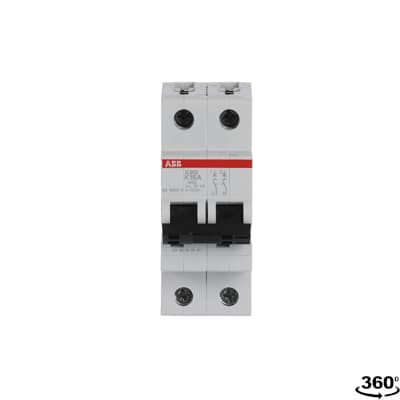

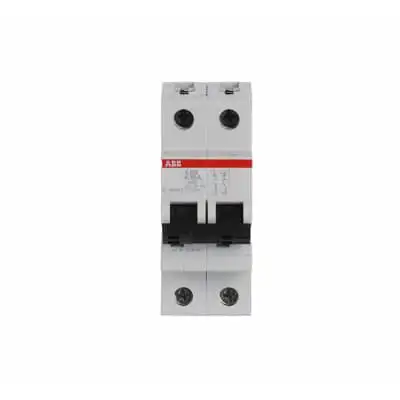

S202-K16 Miniature Circuit Breaker - 2P - K - 16 A
ABB EcoSolutions
- ABB EcoSolutions：
- Yes
- EcoSolutions Profile：
- 9AKK108469A3796
Circular Value
- Circular Design Principles Recyclability Rate：
- Design for Closing Resource Loops - Standard EN45555 - 87.8 %
- Offered with Extended Lifetime：
- Product Durability
- End of Life Instructions：
- 9AKK108468A3132
Eco Transparency
- Environmental Product Declaration - EPD：
- 9AKK108467A7832
Technical
- Standards：
- IEC/EN 60898-1
- IEC/EN 60947-2
- UL 1077
- Tripping Characteristic：
- K
- Rated Operational Voltage：
- acc. to IEC 60898-1 400 V AC
- acc. to IEC 60898-1 400 V
- acc. to IEC 60947-2 440 V AC
- Operational Voltage：
- Maximum (Incl. Tolerance) 125 V DC
- Maximum (Incl. Tolerance) 440 V AC
- Rated Insulation Voltage (Ui)：
- acc. to IEC/EN 60664-1 440 V
- Rated Impulse Withstand Voltage (Uimp)：
- 4 kV
- at 2000 m 5 kV
- at Sea Level 6.2 kV
- Dielectric Test Voltage：
- 50/60 Hz, 1 min: 2 kV
- Input Voltage Type：
- AC/DC
- Rated Current (In)：
- 16 A
- Rated Short-Circuit Capacity：
- (AC) 6 kA
- (DC) 6 kA
- (400 V AC) 6 kA
- (400 V) 6 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)：
- (125 V DC) 10 kA
- (230 V AC) 20 kA
- (400 V AC) 10 kA
- (440 V AC) 10 kA
- (48 V DC) 20 kA
- (230 V) 20 kA
- (400 V) 10 kA
- Rated Conditional Short-Circuit Current (Inc)：
- (230 V) 20 kA
- (400 V) 20 kA
- Rated Service Short-Circuit Breaking Capacity (Ics)：
- (230 V AC) 15 kA
- (400 V AC) 7.5 kA
- (440 V AC) 7.5 kA
- Frequency (f)：
- 50 Hz
- Rated Frequency (f)：
- 50 / 60 Hz
- Power Loss：
- 4 W
- at Rated Operating Conditions per Pole 2 W
- Power Supply Connection：
- Arbitrary
- Contact Position Indication：
- Red ON / Green OFF
- Energy Limiting Class：
- 3
- Electrical Endurance：
- 20000 AC cycle
- Mechanical Endurance：
- 20000 cycle
- Number of Protected Poles：
- 2
- Number of Poles：
- 2
- Overvoltage Category：
- III
- Tightening Torque：
- 2.8 N·m
- Mounting Type：
- DIN-Rail
- Screw Terminal Type：
- Failsafe Bi-directional Cylinder-lift Terminal
- Actuator Marking：
- I / O
- Actuator Material：
- Insulation Group II, Black, Sealable
- Housing Material：
- Insulation Group II, RAL 7035
- Mounting on DIN Rail：
- TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
- TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
- Mounting Position：
- any
- Recommended Screw Driver：
- Pozidriv 2
- Accessories Available：
- Yes
- Connecting Capacity：
- Busbar 10 / 10 mm²
- Flexible with Ferrule 0.75 ... 25 mm²
- Flexible 0.75 ... 25 mm²
- Rigid 0.75 ... 35 mm²
- Rigid 0.75 ... 35 mm²
- Stranded 0.75 ... 35 mm²
- Installation Size：
- acc. to DIN 43880 1
- Wire Stripping Length：
- 12.5 mm
- Terminal Type：
- Screw Terminals
Material Compliance
- RoHS Information：
- 2CDK403001D0607
- RoHS Status：
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Date：
- 0335
- REACH Declaration：
- 9AKK108468A9644
- REACH Information：
- True - contains substances > 0.1 mass percentage
- REACH Date：
- 20231212
- Conflict Minerals Reporting Template (CMRT)：
- 9AKK108468A3363
- SCIP：
- e6800e55-46b1-49a3-881b-0f66d0e903ad Germany (DE)
