ABB MLBL-01W 1SFA611621R1015
MLBL-01W 1SFA611621R1015MLBL-01WLEDblock
MLBL-01W
基本信息
型号: MLBL-01W
订货号: 1SFA611621R1015
参考面价： 58.09 EUR

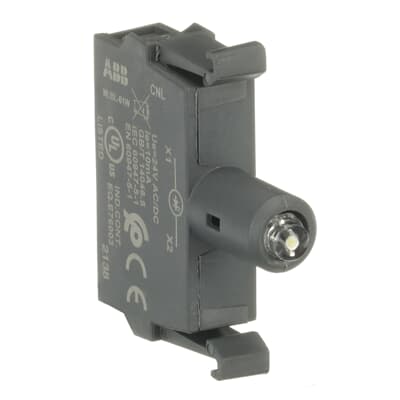

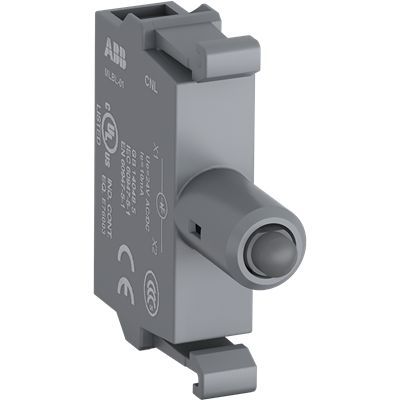

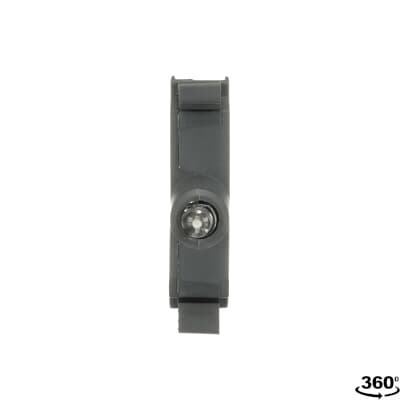

MLBL-01W LED block
Supplier Information - SEROP
- Country of Origin：
- Sweden (SE)
Ordering
- Minimum Order Quantity：
- 10 piece
- Customs Tariff Number：
- 85369001
Popular Downloads
- Data Sheet, Technical Information：
- 1SFC151007C02__
- Instructions and Manuals：
- 1SFC151011M0201
Dimensions
- Product Net Width：
- 0.01 m
- Product Net Height：
- 0.044 m
- Product Net Depth / Length：
- 0.042 m
- Product Net Weight：
- 0.01 kg
Technical
- Ambient Air Temperature：
- Operation -25 ... +70 °C
- Storage -40 ... +85 °C
- Color：
- White
- Illumination：
- Illuminated
- Lamp Type：
- 24V AC / DC, integrated LED
- Mounting Type：
- Front mounting
- Rated Frequency (f)：
- 50 / 60 Hz
- Rated Operational Voltage：
- 24 V AC/DC
- Connecting Capacity：
- Flexible with Ferrule 1 x 0.75...2.5 mm²
- Flexible with Ferrule 2 x 0.75...2.5 mm²
- Flexible with Insulated Ferrule 1 x 0.75...2.5 mm²
- Flexible with Insulated Ferrule 2 x 0.75...2.5 mm²
- Flexible 1 x 0.75 ... 2.5 mm²
- Flexible 2 x 0.75 ... 2.5 mm²
- Solid 1 x 0.75...2.5 mm²
- Solid 2 x 0.75...2.5 mm²
- Connection Type：
- Screw Clamp
- Terminal Type：
- Screw Terminals
- Tightening Torque：
- 0.9 N·m
- Wire Stripping Length：
- 8 mm
- Suitable For：
- MCBH-00
- MCBH5-00
- MP1
- MP2
- MP3
- MP4
- MPMT3
- MPMP3
- M2SS1
- M2SS2
- Show more
- Suitable for Product Class：
- Pilot Devices
