ABB F204 B-40/0.3 2CSF204568R3400

ABB F204 B-40/0.3 2CSF204568R3400

F204 B-40/0.3 2CSF204568R3400F204B-40/0.3Residual

瑞士 ABB
首页品牌中心瑞士 ABBF204 B-40/0.3 2CSF204568R3400

F204 B-40/0.3 2CSF204568R3400

ABB F204 B-40/0.3 2CSF204568R3400
F204 B-40/0.3 2CSF204568R3400基本信息

型号: F204 B-40/0.3

订货号: 2CSF204568R3400

F204 B-40/0.3 Residual Current Circuit Breaker 4P Type B 300 mA
F204 B-40/0.3 2CSF204568R3400基本属性
净重：0.380 KG
长度：69 mm
宽度：70 mm
高度：85 mm
F204 B-40/0.3 2CSF204568R3400ABB EcoSolutions
ABB EcoSolutions：
Yes
EcoSolutions Profile：
9AKK108469A3795
F204 B-40/0.3 2CSF204568R3400Circular Value
Circular Design Principles Recyclability Rate：
Design for Closing Resource Loops - Standard EN45555 - 51.4 %
Group Waste to Landfill Target：
No non-hazardous waste is sent to a landfill
Sustainable Material Content in Packaging：
Recycled Paper - 78 %
Offered with Extended Lifetime：
Product Durability
End of Life Instructions：
9AKK108468A4363
F204 B-40/0.3 2CSF204568R3400Eco Transparency
Environmental Product Declaration - EPD：
9AKK108467A3700
F204 B-40/0.3 2CSF204568R3400Technical
Standards：
IEC/EN 61008
Type of Residual Current：
Type B
Rated Voltage (Ur)：
230/400 V
Rated Operational Voltage：
230 / 400 V AC
Rated Insulation Voltage (Ui)：
440 V
Test Voltage (Ut)：
170-253 V AC
Rated Impulse Withstand Voltage (Uimp)：
4 kV
Dielectric Test Voltage：
2500 V
Input Voltage Type：
AC
Rated Current (In)：
40 A
Rated Residual Current：
300 mA
Rated Residual Breaking Capacity (IΔm)：
1 kA
Rated Conditional Short-Circuit Current (Inc)：
  • (Typ gG/gLfuse, 500 V) 100 A
  • Selective MCB S750-E 63A or S750DR-E/K 100 A
Impulse Current：
I (max, 8 / 20 µs) 3000 A
Maximum Surge Current：
3 kA
Rated Frequency (f)：
50 … 60 Hz
Power Loss：
6.95 W
Electrical Endurance：
10000 cycle
Mechanical Endurance：
20000 cycle
Number of Poles：
4
Number of Modular Spacings per DIN Rail：
4
Operating Characteristic：
Instantaneous (APR High Immunity)
Overvoltage Category：
III
Position of Neutral Terminals：
Right
Tightening Torque：
2.8 N·m
Delay Time (τ)：
10 ms
Accessory Type：
Auxiliary contact, Signal contact/auxiliary contact, Shunt trip, Undervoltage release, Overvoltage release, Motor operating device, Auto reclosing unit
Mounting Type：
DIN-Rail
Screw Terminal Type：
Failsafe Bi-directional Cylinder-lift Terminal
Options Provided：
None
Mounting Position：
Any
Accessories Available：
Yes
Number of Batteries：
0
Cable Size：
25 mm²
Connecting Capacity：
  • Busbar 10 mm²
  • Flexible 1 ... 25 mm²
  • Stranded 1 ... 25 mm²
Rated Cross-Section：
1 - Solid-Core 1 ... 25 mm²
Wire Stripping Length：
12 mm
Terminal Type：
Screw Terminals
F204 B-40/0.3 2CSF204568R3400Material Compliance
RoHS Information：
9AKK106713A5610
RoHS Status：
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date：
20211115
REACH Declaration：
9AKK108467A9482
REACH Information：
True - contains substances > 0.1 mass percentage
Conflict Minerals Reporting Template (CMRT)：
9AKK108468A3363
F204 B-40/0.3 2CSF204568R3400Environmental
F204 B-40/0.3 2CSF204568R3400Dimensions
F204 B-40/0.3 2CSF204568R3400Ordering
F204 B-40/0.3 2CSF204568R3400Certificates and Declarations
F204 B-40/0.3 2CSF204568R3400Installation
F204 B-40/0.3 2CSF204568R3400Popular Downloads
F204 B-40/0.3 2CSF204568R3400Classifications
F204 B-40/0.3

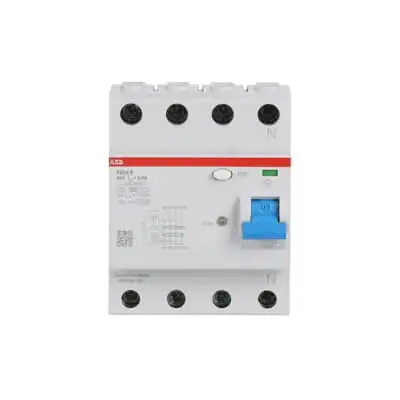

F204 B-40/0.3 2CSF204568R3400 - ABB产品主图
