2CSR255164R1204DS301CTC20A30ResidualCurrentCircuit
2CSR255164R1204
基本信息
型号: 2CSR255164R1204

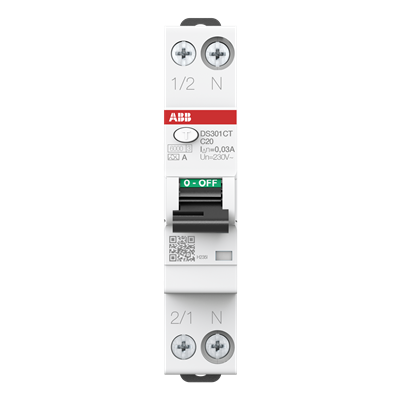

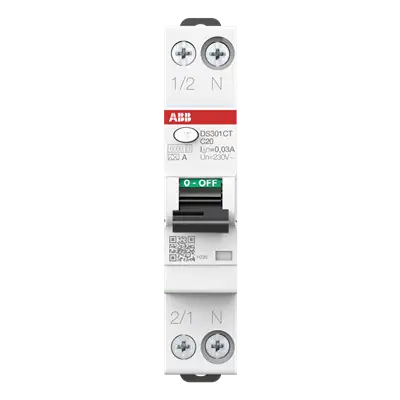

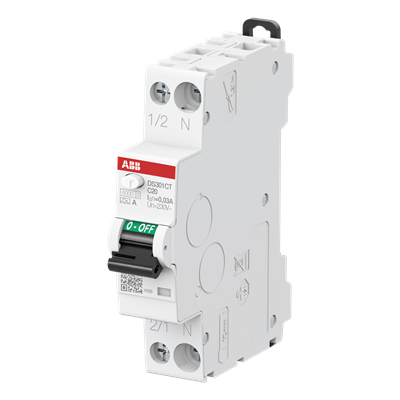

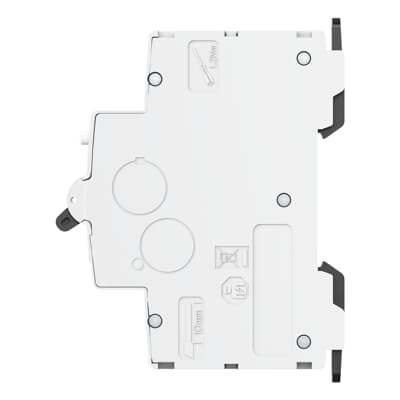

DS301CT C20 A30 Residual Current Circuit Breaker with Overcurrent Protection
Technical
- Standards：
- IEC/EN 61009-1
- IEC/EN 61009-2-1
- EN 45545
- Tripping Characteristic：
- C
- Type of Residual Current：
- Type A
- Rated Operational Voltage：
- acc. to IEC 60898-1 240 V
- Rated Insulation Voltage (Ui)：
- acc. to IEC/EN 60664-1 500 V
- Test Voltage (Ut)：
- 170 ... 264 V
- Rated Impulse Withstand Voltage (Uimp)：
- 4 kV
- Dielectric Test Voltage：
- 2.5 kV
- Input Voltage Type：
- AC
- Rated Current (In)：
- 20 A
- Rated Residual Current：
- 30 mA
- Rated Short-Circuit Capacity：
- 6 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu)：
- 6 kA
- Rated Residual Breaking Capacity (IΔm)：
- EN 61009-1 4500 A
- IEC 61009-1 3000 A
- Rated Service Short-Circuit Breaking Capacity (Ics)：
- 6 kA
- Rated Frequency (f)：
- 50 … 60 Hz
- Power Loss：
- Average per Pole 1.7 W
- Phase Pole 2.6 W
- Neutral Pole 0.8 W
- Total 3.4 W
- Power Supply Connection：
- Arbitrary
- Contact Position Indication：
- Red ON / Green OFF
- Energy Limiting Class：
- 3
- Electrical Endurance：
- 7000 cycle
- Mechanical Endurance：
- 7000 cycle
- Number of Protected Poles：
- 1
- Number of Poles：
- 1+N
- Number of Modular Spacings per DIN Rail：
- 1
- Fault Indication：
- Blue flag below toggle
- Operating Characteristic：
- Instantaneous
- Overvoltage Category：
- III
- Position of Neutral Terminals：
- Right
- Tightening Torque：
- 1.2 N·m
- Accessory Type：
- Busbar Psc series, Padlock
- Actuator Type：
- Toggle - Insulation group II, Black RAL 9005,
- sealable in ON-OFF positions
- Housing Type：
- Insulation group I - II, RAL 7035
- Mounting Type：
- DIN-Rail
- Screw Terminal Type：
- Failsafe Bi-directional Cylinder-lift Terminal
- Mounting Position：
- Any
- Accessories Available：
- No
- Connecting Capacity：
- Busbar 10 ... 10 mm²
- Rigid 1.5 ... 16 mm²
- Flexible 1.5 ... 16 mm²
- Rated Cross-Section：
- 1 - Solid-Core 1.5 … 16 mm²
- 4 - Multi-Wired 1.5 … 10 mm²
- Wire Stripping Length：
- 10 mm
- Terminal Type：
- Screw Terminals
Material Compliance
- RoHS Information：
- 9AKK108466A7779
- RoHS Status：
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Date：
- 20220727
- REACH Declaration：
- 9AKK108467A9482
- Conflict Minerals Reporting Template (CMRT)：
- 9AKK108468A3363
Environmental
- Ambient Air Temperature：
- Operation -25 … 55 °C
- Reference Ambient Air Temperature：
- 30 °C
- Degree of Protection：
- IP20
- IP40
- Pollution Degree：
- 2
- Environmental Conditions：
- 28 cycles
- |with 55 °C / 90-96 %
- |and 25 °C / 95-100 %
- Resistance to Vibrations：
- 20 Cycles with Load 0.8 In: 1g or 1mm 50 … 150 … 5 Hz
- Resistance to Shock acc. to IEC 60068-2-27：
- 25g 2 shocks 13 ms
Dimensions
- Width in Number of Modular Spacings：
- 1
- Product Net Width：
- 0.0176 m
- Product Net Height：
- 0.092 m
- Product Net Depth / Length：
- 0.068 m
- Product Net Weight：
- 0.110 kg
- Built-In Depth (t2)：
- 17.6 mm
Ordering
- Package Level 1 Units：
- box 1 piece
- Package Level 1 Gross Weight：
- 0.127 kg
- E-Number (Sweden)：
- 2160204
