基本信息
型号: 3HNA029043-001
订货号: 3HNA029043-001
参考面价： 4274.28 EUR

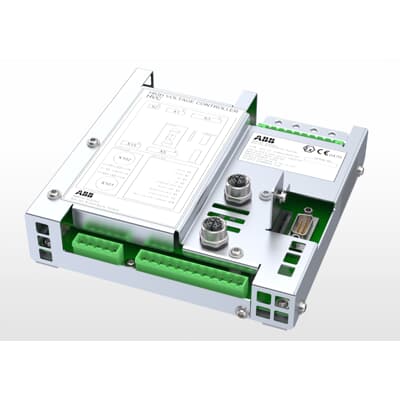

HVC-02C
Supplier Information - SEROP
- Technical Information：
- If HVC-02C is ordered for replacing HVC-02B, ACK (Atomizer configuration
- key) is also needed.
- If robot system has option F1515-1 - High voltage controller solution
- 2A, please order 3HNA029236-002 ACK-02 BOARD.
- If robot system has option F1515-2 - High voltage controller solution
- 10A, please order 3HNA029236-001 ACK-01 BOARD.
- Minimum required IPS SW is IPS 4.60.07/IPS 4.50.26/IPS 4.30.34/IPS
- 4.27.50.
- IPS will not send elog message if clamping occurs for versions lower
- than 4.60.24, if need this new function, please update IPS to 4.60.24 at
- least.
- Country of Origin：
- China (CN)
Technical
- Technical Information：
- If HVC-02C is ordered for replacing HVC-02B, ACK (Atomizer configuration
- key) is also needed.
- If robot system has option F1515-1 - High voltage controller solution
- 2A, please order 3HNA029236-002 ACK-02 BOARD.
- If robot system has option F1515-2 - High voltage controller solution
- 10A, please order 3HNA029236-001 ACK-01 BOARD.
- Minimum required IPS SW is IPS 4.60.07/IPS 4.50.26/IPS 4.30.34/IPS
- 4.27.50.
- IPS will not send elog message if clamping occurs for versions lower
- than 4.60.24, if need this new function, please update IPS to 4.60.24 at
- least.
Ordering
- Country of Origin：
- China (CN)
- Invoice Description：
- HVC-02C
- Minimum Order Quantity：
- 1 piece
- Selling Unit of Measure：
- piece
- Order Multiple：
- 1 piece
- Quote Only：
- No
- Made To Order：
- No
- Stocked At (Warehouses)：
- Menden, Germany
- Shanghai, China
Classifications
- Customs Tariff Number：
- 85044095
- Part Type：
- New
- WEEE Category：
- Product Not in WEEE Scope
Dimensions
- Product Net Weight：
- 0.97 kg
- Gross Weight：
- 0.97 kg
- Product Net Depth / Length：
- 167.5 mm
- Product Net Height：
- 55 mm
- Product Net Width：
- 157.5 mm
Additional Information
